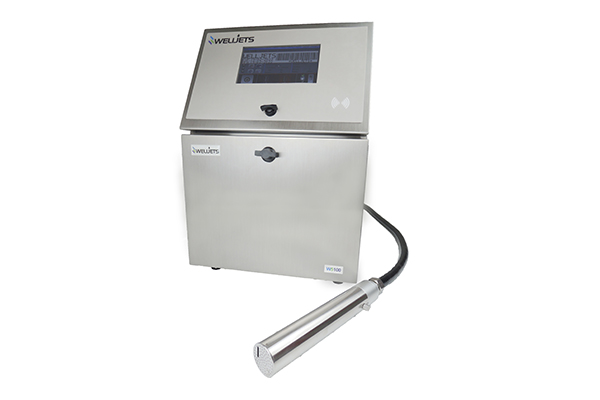

Wellljets W5100 Continuous Inkjet Printer

Easy operation + Easy Maintenance+ Easy Ownership

It is an industrial printer. The latest Linux designed operation software and reliable hydraulic pipeline system are adopted.

Adopting the advanced technology, it integrates the stable performance, convenient operation and use, wide application and reasonable use cost perfectly to provide you with high-quality service, so that you can easily control and obtain your inkjet needs

Advantages & Benefits:

Up to 5 lines of print

Variable nozzle size optional based on products

Line speeds up to 1200 ft/min （366m/min）

Wireless connectivity to Windows tablet & Mobile

Simple maintenance with quick disconnect replacement components

Welljets W5100 lines inkjet printer features:

32-bit embedded Linux operating system, 5 CPU chips

Gear pressure pump, overload protection

USB flash disk is convenient for saving / loading printing information and configuration parameters

Ink and solvent bottle detector to ensure smooth operation

7-inch TFT color screen, QWERT international standard smartphone input

CE / ISO 9001 certification

Print samples:

Printing Speed:

Single row 5x5 dot matrix, 210 M / min (688 ft / min)

Single line 7x5 dot matrix, 170 M / min (557 ft / min)

Double row 7x5 dot matrix, 72 m / min (236 ft / min)

Three row 7x5 dot matrix, 39 m / min (128 ft / min)

Four row 7x5 dot matrix, 22 m / min (72 ft / min)

Font Matrix:

1 line:5X5、7x5, 9x7, 11x7, 15x11,23x15, 32x24

2 lines:5x5, 7x5, 9x7, 11x7, 15x11, 23x15

3 lines:5x5, 7x5, 9x7, 11x7, 15x11

4 lines:5x5, 7x5, 9x7, 11x7

Barcode Types:

Code39, Code128, EAN128, EAN-8, EAN-13

UPC-A&E,QR code, DataMatrix

Message Height:

Minimum  1mm~20mm（0.04 ~0.8inc, variable depends on fonts

Distance between head to object:

Optimum:10-15mm（0.4-0.6in）

Range:0.5mm（0.2in）-25.4mm（1in）

Input Language & Interface:

English, Chinese, Arabic, Persi, Latin, Russion etc.

English, Chinese、Arabic, Vietnam,Thailand,persi,france, germany, Korea, Spainish etc.

Storage of messages:

1000pcs complicated message

Reservoir:

1500ml ink & solvent reservoir

Optional:

Remote control software (win 10), RJ45 or Wi-Fi

Encoder & Sensor

Main Application Field:

It provide superior quality small characters on a variety of substrates: porous, non-porous, smooth textured, curved, concave and more

It offers a reliable ,yet cost effective solution for virtually any small character, primary package coding applications such as plastic bags, paper bags, paper, glass, mental, medicine box, cartons, electronic products, lables, mylon, ABS/PVC/PE, rubber, resins, ceramics etc.

Brand Owned By:

Welljets Coding Technology Co.,Ltd.

1106, No.79 Aona Road, Shanghai, PRC.

Email: info@welljets.com

To Learn more, www.welljets.com
