Wellljets W4600 Continuous Inkjet Printer

Simple Operation  Stable Performance  Low Maintenance

W4600 inkjet printer, the ink system and nozzle have been innovatively improved to more adapt to different ink needs. With excellent stability and high-definition printing quality, it is the most cost-effective automatic identification equipment to meet the needs of various industries and various identification requirements. It is design for industrial users who need a competitively priced printer while demanding the classic design, which delivers leading reliability and print quality.

Advantages & Benefits:

Up to 5 lines of print, Maximum 34 dots

Line speeds up to 616 ft/min （188m/min）

Simple maintenance with quick disconnect replacement components

Push button stop/start with automatic print head flushing

W4600 Features:

Fully dissectable ruby nozzle design solves the problem of nozzle blockage and reduces the user's use cost.

Spin ink adding system, plug and play, no need to replace the ink tank and save consumables.

The fully enclosed high-pressure package design can adapt to various harsh production environments.

Printing Speed:

Single row 5x5 dot matrix, 210m/min (688 ft / min)

Single row 7x5 dot matrix, 188m /min(616ft / min)

Double rows 7x5 dot matrix, 81 m / min (265ft / min)

Three rows 7x5 dot matrix, 40 m / min (131 ft / min)

Barcode Types:

Code39, Code128, EAN128, EAN-8, EAN-13,

UPC-A&E,QR code, DataMatrix

Font Matrix:

1 row:5X5、7x5, 9x7, 11x7, 15x11,23x15, 32x24

2 rows:5x5, 7x5, 9x7, 11x7, 15x11, 23x15

3 rows:5x5, 7x5, 9x7, 11x7, 15x11

4 rows:5x5, 7x5, 9x7, 11x7

Message Height:

Minimum  1mm~20mm（0.04 ~0.8inc, variable depends on fonts

Distance between head to object:

Optimum:10-15mm（0.4-0.6in）

Range:0.5mm（0.2in）-25.4mm（1in）

Input Language & Interface:

English, Chinese etc.

Special software controls the on-off of high voltage, completely avoiding the hardware failure caused by all switch designs.

Storage of messages:

1000pcs complicated message

Optional:

Remote control software (win 10), RJ45 or Wi-Fi

Encoder & Sensor

Main Application Fields:

It is mainly used to print the production date, number and product batch number on the surface of porous, non-porous, smooth textured, curved, concave and more. It offers a reliable, yet cost effective solution for primary package coding applications such as plastic bags, paper bags, paper, glass, mental, medicine box, cartons, electronic products, labels, Nylon, ABS/PVC/PE, rubber, resins, ceramics etc.

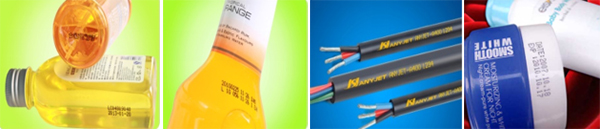

Print samples:
