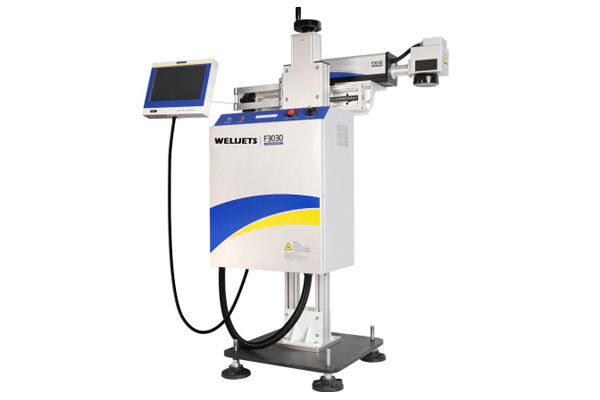

Welljets F3000 Series Fiber Laser Marking Machine




Welljets fiber Laser marking machine mainly uses Raycus laser, JHC high performance scanning system, and control software developed by our company to achieve high speed and stable performance.

Good laser mode, long service life, continuous working up to 100000 hours, high electro-optic conversion efficiency, low power consumption.

The system is simple to operate, flexible and convenient to change. Full interfaces, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP, CAXA and other software output files, can be bar code, two-dimensional code, graphic text and other marking, support PLT, PCX, DXF, BMP and other file formats, direct use of SHX, TTF font library. The system can automatically code, print serial number, batch number, date and so on.

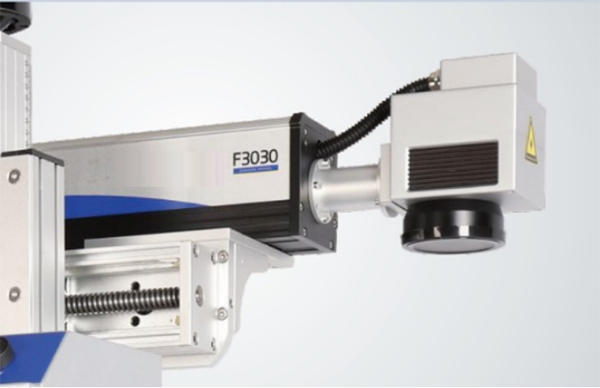

Unique Design

Compact design with stainless steel, anodized aluminum materials.


Performance

Stable, fast printing, and good running modes.


Fonts

All windows fonts, all barcodes, support varieties of formats of graphics files.

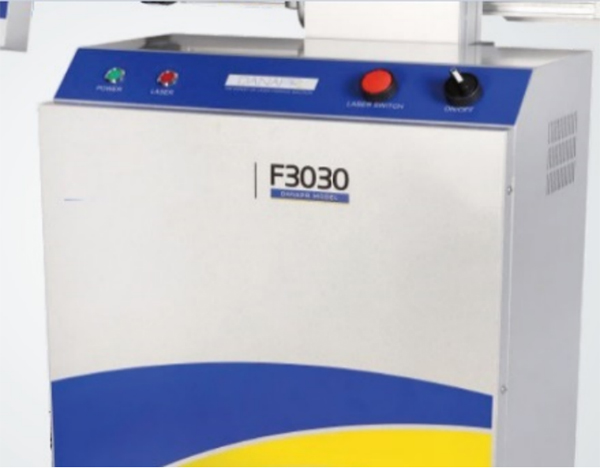

Safety

separate switches which can control the power on and off independently.


Intelligent

RS-232/422, Ethernet (TCP/IP), Synchronizer and electric eye trigger input interfaces, etc.


Well Printing

Well-proportioned thickness, clear and complete markings; not offset, no font skew & double shadow.


Fiber Laser Marking Machine

Welljets F3000 Series


Laser Type

﹡Adjustable pulse fiber laser λ=1064nm, Nd. YAG

﹡MTBF>=100,000 hours


ModelF3020F3030F3050
Power20W30W50W
Characters/S700800900
Line Speed*8000mm/s9000mm/s10000mm/s


Printing Features

﹡Characters Height: 0.2mm to 70mm

﹡Number of Lines: Limited only by character height and allowable print area

﹡Marking area :110mm*100mm to 650mm*650mm

﹡Minimum line width: 0.02mm


Marking Data

﹡Serial number, text, date, time, fonts, etc.

﹡Multi - language support, user - defined fonts, counter, shift code.

﹡Codes Support: Barcode, QR-code, Code128, Code 39, Data-Matrix Code.

﹡Document Type: BMP/DXF/HPGL/JPEG.

﹡Graphic Element: Points, lines, arcs, rectangles, polygons, ellipses, circles.


Operation Interface

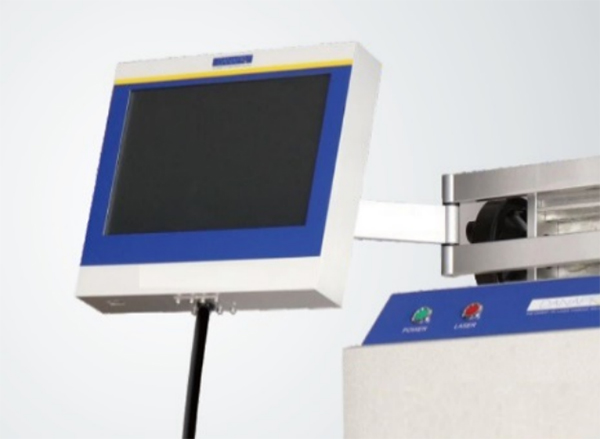

﹡10.1inch touch screen, QWERTY or AZERTY virtual keyboard, quick icon wizard operations.


Communication Interface

﹡Rs-232, Ethernet (10/100 Mbit), USB port, SD card

﹡I/O: PN/PNP/24V – detector

﹡Speed Detection: Encoder or synchronizing signal

﹡Input Signal: Start, stop, interlock

﹡Output Signal: Status indication, cooling device control, machine remote control.


Other Characteristics

﹡Outlooking: Stainless steel support structure, anodized alumina.

﹡Power: 90-264V AC,47-63Hz,800W

﹡Cooling system: Air cooling

﹡Operation Environment: -6-45℃,10%-90%RH, non-condensing

﹡Ip Rating: IP54


Accessary

﹡Fume extractors

﹡Complete stand bracket

﹡Encoder & Photocell

﹡Alarm





VISIBLE AND INVISIBLE LASER RADIATION

AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION

MAX. AVERAGE POWER: 50W

MAX. PULSEENERGY: 1.1 mJ

PULSE DURATION: 1 - 300 ns

WAVELENGTH: λ = 1040 - 1090 nm

LASER CLASS 4
